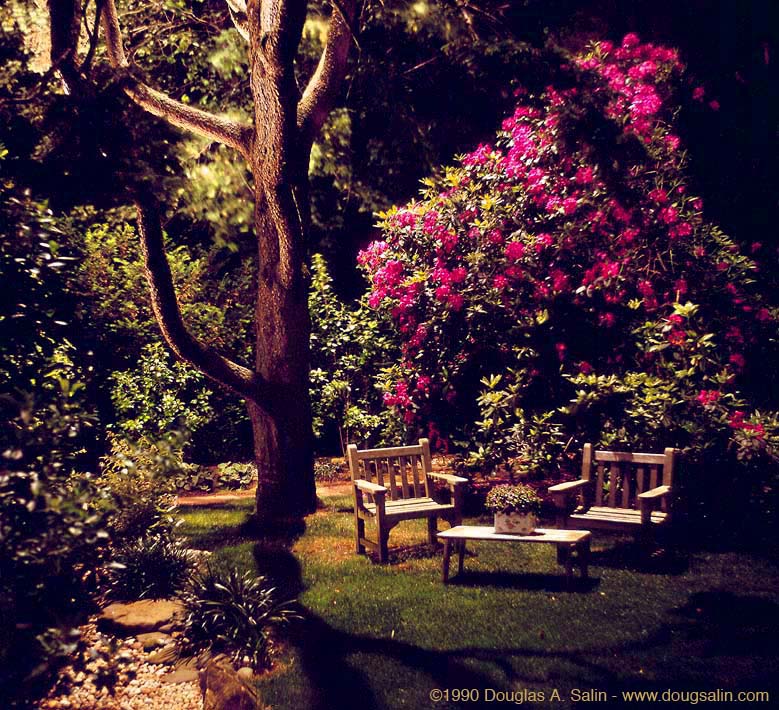

A Perfect 10 - "The Deluxe Nightmare of Mercury Vapor"

The year was 1990. The Hubble Space Telescope was traveling through space. I was traveling
to the Hamptons on Long Island.
This was one of my earlier air travel jobs as an architectural lighting photographer (see note
below). I got to fly to New York, and it felt pretty good...

After a lengthy conversation about his projects, the subject turned to his lighting, and which
lamps he used. He explained that he used a Deluxe Mercury Vapor lamp( http://www.p2pays.org/ref/32/31148.pdf ).

I was, of course, clue less. Until then, I had no
experience with Deluxe Mercury Vapor lamps. I figured the smart thing to do was to have him
send me a sample light fixture (Greenlee) with a sample lamp, so I could do some film tests.
When taking color photographs under unusual or unfamiliar light sources, be prepared for
some unusual results. Test first if you can.

The sample lighting fixture arrived at my studio a few days later and film testing began. Those
days I used 4 x 5 Kodak Ektachrome 64T, Tungsten balanced transparency film. I measured
the light source with my Minolta color temperature meter and observed that this lamp type had
an enormous cyan color spike.
MORE COLOR INFO HERE

What looked reasonable to the eye would be very, very cyan on transparency film. On transparency films, color correction is done using the complimentary color, so red was the color to use with this lamp. But, how much? My strongest red filter alone was not strong enough to handle the excess cyan of these nasty lamps. The solution was to triple up several red filters. With about 70cc (units of color correction) over the lens, and the film would be color balanced. I used glass filters to prevent the possibility of Newton rings, since plastic and gel filters have curvatures that can create the rings.
http://tnweb.tn.utwente.nl/inlopt/lpmcad/mcaddocs/newtonrings/newton.htm

The loss of light transmission due to the red filters over the lens became the big issue. What was a normal exposure of 30 seconds in the studio with no filter (bad color) became a 4 minute exposure when the red filters (balanced color) were added over the lens. By removing the cyan with the red filters, I was also removing or neutralizing most of the lamp's light output. A colored glass filter actually absorbs it's complimentary color and transmits the rest.
http://216.110.168.55/march2003/jaltengarten3_2003.shtml In this case, the cyan was absorbed by the glass filter. The rest of the color spectrum passed through the filter, albeit very little. Since much of the lamp's out-put in lumens, comes from the cyan spike, I necessarily removed most of it's light. This is called the filter factor. The original 160 watt
lamps were now the equivalent of 40 watt lamps. The resulting 4 minutes of exposure on 4 x 5 film was acceptable under good conditions. (Try taking pictures outside with 40 watt bulbs!) I was ready and prepared for the challenge...

Greg Yale picked me up at Kennedy and we drove to Southampton. He later escorted me out to view several of his finished projects. I observed that ALL of the tree mounted fixtures, at ALL of the sites we visited, were different
than the one he sent me. Light baffles, called "louvers" were installed over the lamps.
http://www.britannica.com/eb/article?eu=50287&tocid=0&query=lath
Simply speaking, these louvers look like honeycomb waffle with holes for the light to pass through.
http://www.residential-landscape-lighting-design.com/store/PPF/parameters/1537_401/more_info.asp
These were about 3/8ths of an inch thick and were black anodized. They prevent light from exiting the fixture to the sides. They allowed for a beautiful non glaring installation. The effect was very pleasing. There was little or no stray light, which is very desirable. Elegant installations.

Unfortunately, a sample louver had not been sent to me for my color and exposure testing. It did not occur to me to ask either.
Photographically speaking the added louvers created a nightmare. They decreased the light output of each source by about 2 additional f stops. The basic 4 minute exposure was now increased (by a factor of 2) to 16 minutes (with the added potential of color "reciprocity"failure on the film). http://photography.about.com/library/weekly/aa082602c.htm The 16 watt original lamps, that were reduced to 40 watt as a result of the glass filters, were now 10 watts of output due to the louvers. Yikes!!! As a compromise, I settled for 8 minuteexposures and opened the lens 1 f stop(f16). F16 on a 4 x 5 camera is not a very good f stop.
Focus becomes extremely critical. A few Polaroids were taken and adjustments were made. When it came time to shoot the 6 pieces of film (48 minutes) it was late into the evening. Time flies, not to mention wind, the earth, and bugs (see below) ...

The film was sent by messenger to Manhattan the next morning for pull processing, and rushed back to Southampton the following afternoon. The result was a very pleasing garden shot with full mood, excellent color, and not too much wind motion. I hope you enjoy the shot.

Doug

Douglas A. Salin Photographer
647 Joost Avenue
San Francisco, CA 94127
415-584-3322
415-227-6600 Pager
